Applications :

• The cables are used as interconnecting cables for Solid State Interlocking (SSI) systems.

Standards :

• BR 1932

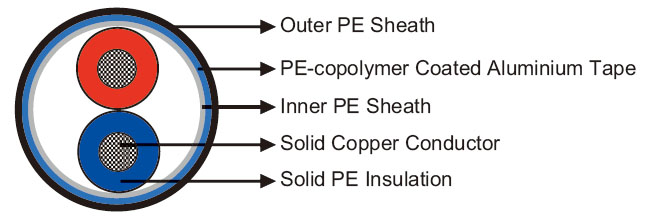

Construction :

• Conductors : Class 1 solid plain copper conductor, 1.27mm nominal diameter.
• Insulation : Solid polyethylene.
• Inner Sheath : Low density polyethylene.
• Moisture Barrier : PE Copolymer coated aluminium tape.
• Sheath : Low density polyethylene.
• Core Identifi cation : Blue & Red.

Optional :

• Unarmoured Cable: The cables offered without galvanized steel tapes (SW).
• Traction Armoured Cable: The cables offered with galvanized steel fl at wire armour with or without protection sheath (SW-F/FT).
• Halogenfree Sheathed Cable: The cables offered with LSZH sheath according to IEC 60332-3C (SW-CLN/FN).

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.27
  Nominal Conductor Cross Section	mm2	2.5
  Maximum Conductor Resistance	Ω/km	7.41

Mechanical and Thermal Properties :

• Minimum Bending Radius : 6 × OD.
• Temperature Range : -25°C to +85°C (during operation); -10°C +85°C (during installation).

Dimensions and Weight :



Cable Code	No. of pairs	Nominal Sheath Thickness mm	Overall Diameter Min/Max mm	Nominal Weight kg/km
1.27mm Conductor, 2.59mm Insulation Wire
RS1932-2Y2Y(L)2Y-1P1.27	1	2.5	12.47/12.8	136





UV Resistant	Anti Induction	Water Resistant	Rated Voltage	Buried in Ciround	Laid In conduit	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1
